Solar Home Systems
Our in house designed and pre-build Solar Homes Systems are available in 2 versions:
1) 3kW/ 24V
2) 5kW/ 48V
Each system incorporates a unique all-in-one inverter/charger that is able to charge batteries from solar with the integrated MPPT solar charge regulator as well from a generator/grid connection while at the same time supplying loads with AC power. This all-in-one unit is manufactured under German quality control at an unbeatable price. Flexibility in the upgradability of the systems is a given.
Compatibility to PylonTech Lithium batteries is guaranteed for the 5kW version. Lithium batteries from other manufactures can be connected to the 3kW version.
Both systems allow for remote monitoring and supervision via an additional (not included in the system)
3kW/24V Small Solar Home System
This system is designed to cater for a small to medium home and consists of the following components:

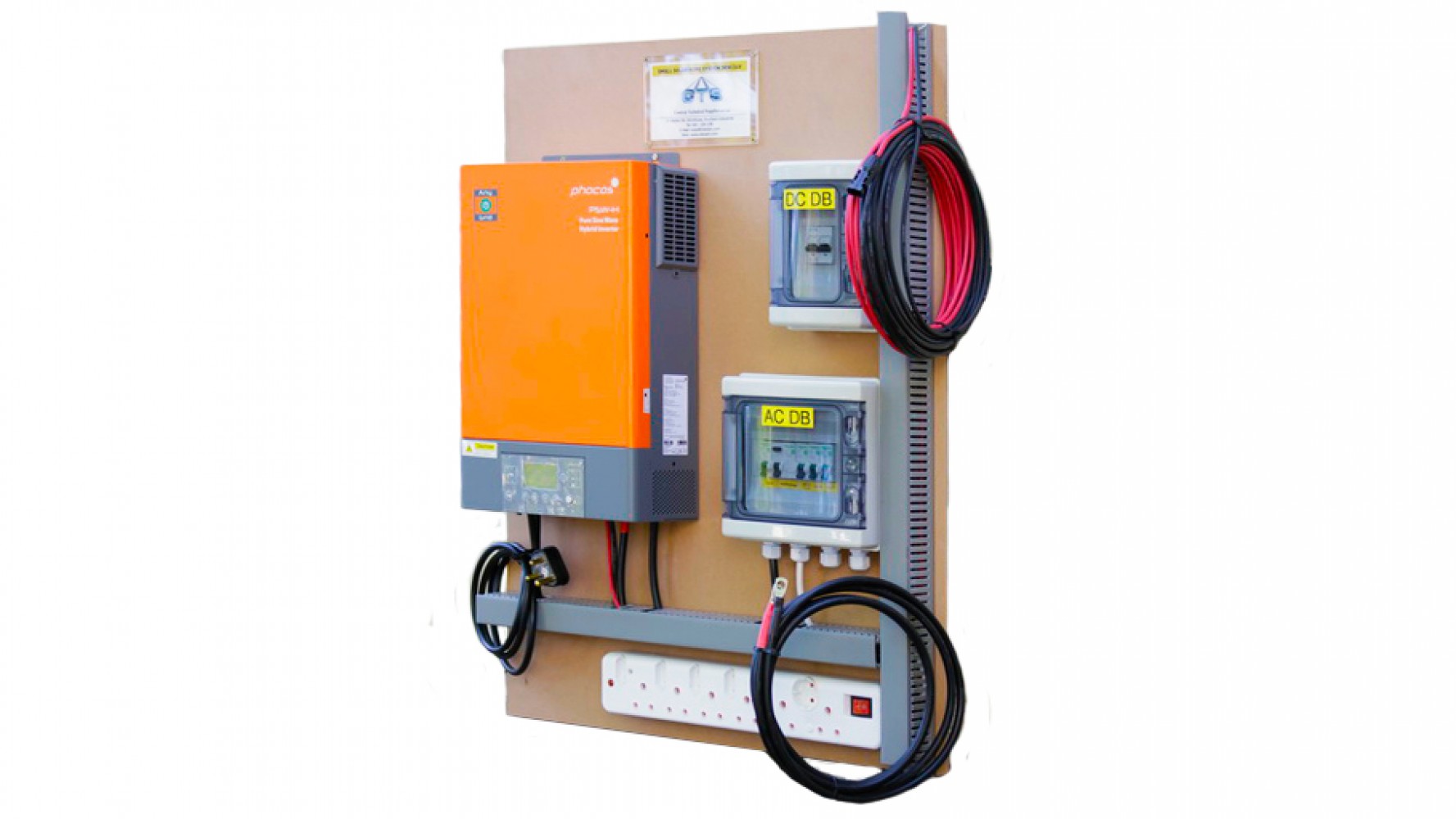

1) Solar Home Board 3kW/24V
2) 4x PV Modules
3) 4x 12V AGM Batteries
4) Mounting accessories and manuals
Although compatibility to PylonTech lithium batteries is given, system upgradeability is limited as only one PylonTech battery model is suitable to be connected to the system. The maximum number of PylonTech batteries that can be connected is limited to 6 (12kWh) while AGM batteries can be expanded to 10 (24kWh).
The above configuration is designed to cater for the following loads:
| Type of Load | Power (W) | Quantity | Daily use (hours) |
| Bulkhead (CFL 1x9W) | 9 | 6 | 6.0 |
| Floodlight (LED 20W) | 20 | 1 | 2.0 |
| Flat screen TV, 40" | 70 | 1 | 6.0 |
| Satellite Decoder | 45 | 1 | 12.0 |
| HiFi System | 100 | 1 | 8.0 |
| Cell Phone Charger | 5 | 5 | 3.0 |
| Fridge, 200L (<1/5kWh/day), A++ | 110 | 1 | 24.0 |
| Expansion capacity | 150 | 1 | 1.0 |
5kW/48V Solar Home System
This Solar Home System is designed to power medium to large houses excluding any workshop and consists of the following components:
1) Solar Home Board 5kW/48V
2) 8x PV Modules
3) 8x 12V AGM Batteries
4) Mounting accessories and manuals
The client can either choose between AGM maintenance free 12V batteries or lithium batteries.
The above configuration allows the connection of the following loads:
| Type of load | Power (W) | Quantity | Daily use (hours) |
| Twin Tube Light fitting (CFL 2x36W) | 72 | 4 | 6.0 |
| Bulkhead (CFL 1x9W) | 9 | 15 | 6.0 |
| Floodlight (LED 50W) | 50 | 3 | 2.0 |
| Flat screen TV, 50" | 80 | 1 | 4.0 |
| DVD | 100 | 1 | 4.0 |
| Satellite Decoder | 45 | 1 | 24.0 |
| HiFi System | 100 | 1 | 6.0 |
| Cell Phone Charger | 5 | 5 | 3.0 |
| Computer: Laptop | 40 | 1 | 8.0 |
| Printer (Multifunction) | 150 | 1 | 5.0 |
| Fridge, 200L (<1/5kWh/day), A++ | 110 | 1 | 24.0 |
| Freezer, 200L (<1/5kWh/day), A++ | 110 | 1 | 24.0 |
| Microwave | 1,000 | 1 | 1.5 |
| Kettle | 2,000 | 1 | 0.5 |
| Expansion capacity | 150 | 1 | 1.0 |
